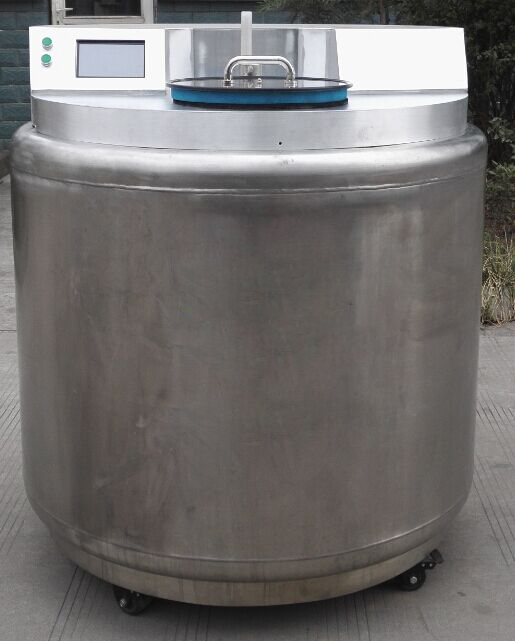

    YDD Series Wide Mouth Stainless Steel Biobank

    top

    YDD series provide the user with a fully automatic, safe and reliable cryogenic liquid nitrogen storage system. All types of tank is made of high quality stainless steel, automatic caster wheel, brake device, convenient open hinged lid, and large diameter openings for sample storage. The sample can be stored in liquid (-196℃) and gas (-190℃). Microcomputer touch control system provides greater convenience and security. In order to achieve the most economical operation, we design the biggest sample storage capacity under the condition of the minimum consumption of liquid nitrogen.


        Main characteristics


    未标题-1

    1.     Made of full austentic stainless steel with polished surface;

    2.     Offset design of mouth to increase capacity and reduce LN2 evaporation;

    3.     Storage in vapor;

    4.     Partition storage in rotating tray; Easy to access samples under flexible rotation;

    5.     Color touch LCD control panel; Users can modify the default parameters;

    6.     Liquid nitrogen level using differential pressure real-time display; high/low level automatic control fluid infusion; super high/ low level alarm; super temperature alarm. Data can be transferred to computor and sent to mobile phone by SMS;

    7.     Battery back-up to ensure uniterrupted power supply;

    8.     Hot gas by-pass & Manual de-fog button;

    9.     Record historical parameters, state of operations and alarms in two ways: Event log & Graph curve;

    10.   Lowest liquid nitrogen consumption;

    11.   -190 top box temperature;

    12.   External handle to control internal tray: safety & reliable;

    13.   Full platform design of the top: Convenient to operate and lay up racks;

    14.   Equipped with high-strength and wearable casters;

    15.   Lockable cover to protect samples in safe;

    16.   5 years vacuum warranty.


       Key Parameters


    YDD Series Wide Mouth   Stainless Steel Biobank Parameters
    ItemYDD-300-326YDD-400-326YDD-500-400YDD-800-445
    Effective Capacity(L)300400
    500800
    Capacity Under Platform(L)80
    100150180
    Neck Opening(mm)326326400445
    Usable Internal height(mm)430
    530
    530560
    Outer Diameter(mm)1108110812101400
    Platform Diameter(mm)960
    96010501260
    Overall Height(mm)1200
    1300
    1250
    1320
    Operation Height(mm)1200
    110011001100
    Weight Empty(kg)320
    380
    480590
    Capacity of 2 ml Vials18200
    20800
    2560042300
    Quantity of Large Racks 100 cell boxes24243244
    Quantity of Mini Racks 25 cell boxes88012
    Number of shelves per Rack7889
    Capacity of 50ml bags960
    1200
    13601880
    Bags per frame45
    55
    YDD Series Wide Mouth   Stainless Steel Biobank Parameters
    ItemYDD-1000-445YDD-1500-550YDD-1800-550YDD-2000-550
    Effective Capacity(L)10001500
    18002000
    Capacity Under Platform(L)200250300350
    Neck Opening(mm)445
    550550550
    Usable Internal height(mm)650
    830
    880890
    Outer Diameter(mm)1510
    154615461610
    Platform Diameter(mm)1360
    139014001460
    Overall Height(mm)1400
    1600
    1700
    1720
    Operation Height(mm)1100
    110011001100
    Weight Empty(kg)650850
    9101080
    Capacity of 2 ml Vials59400
    81200
    9450099000
    Quantity of Large Racks 100 cell boxes48546060
    Quantity of Mini Racks 25 cell boxes24161224
    Number of shelves per Rack11141515
    Capacity of 50ml bags2880367243524608
    Bags per frame6788
